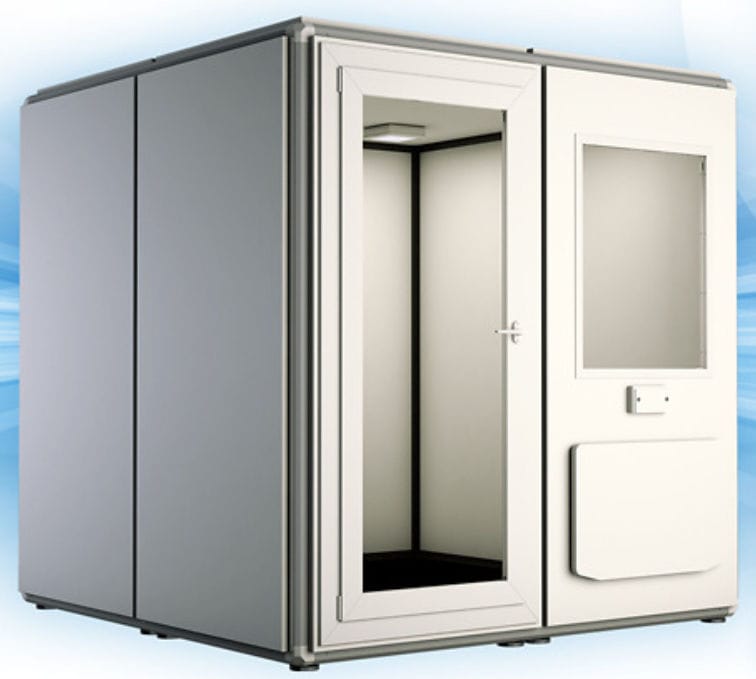

P45S2X1W-COMPLETE : Cabine audiométrique Puma PRO45S
P45S2X1W-COMPLETE : Puma PRO45S Soundproof booth, external dimensions: 216 x 114 x 247 cm, internal dimensions: 200 x 98 x 201 cm, connection pannel and ventilation system included, total glass door with 75 cm wide opening, external folding table included
Applications
PRO45S line is recommended for clinical analyses and diagnostic tests in hospitals and specialized audiology centers. Its modular solutions are suitable for different applications such as Free Field test, ABR / BERA test using Faraday shielding.
Structure
The structure of the cabin is made of a supporting aliminum frame insulated by acoustic materials.
Exterior
The exterior finishing is made of a white highly-resistant, fireproof, washable panel.
Interior
The interior finishing is made of fireproof and washable fabric that creates a very pleasant and comfortable environment.
Door
New total glass door helps to eliminate that closed-in feeling for the patient. The door can be opened from inside and has a clear opening of 75x186 cm (w x h) for standard wheelchairs passage.
Window
The window is large to provide better visibility to the doctor. The window consists of a special double safety glass. Clear view 62 x 80 cm (w x h).
Floor
The floor features a special floating system to reduce vibrations and stands on anti-vibration adjustable feet. Finish: technical, antistatic, fireproof, washable carpet.
Ventilation system
Air ventilation is included and guaranteed by a silent forced ventilation system mounted on top of the booth.**
Connecting instruments
Cables are laid through a new universal soundproof panel without jack connection. All kinds of cables can be used without the need to be cut. Adaptable to all types of instruments. Hangers for earphones are included.
Electrical system
Switches for lighting and ventilation are separated. Lighting is ensured by a LED light with low energy consumption. Power supply: 86/265 V. - 50/60 Hz.
Acoustics
The acoustic panels (optional equipment) allow to adjust the internal acoustics to get more or less reverberation depending on usage. Installation is easy and quick.
Noise reduction
PRO45S line is tested at the Technical-Physics Laboratory C.S.I. S.p.A. (Milano-Italy) accredited by ACCREDIA.
*Product conforms with international UNI EN ISO 8253 1:2010 with a background noise no greater than 68dB (at 500Hz) assuming a noise barrier headset (audiocups) is used.
Acoustic insulation
Hertz | 125 | 250 | 500 | 1000 | 2000 | 3150 | 4000 | 6300 | 8000 |
dB | 20.0 | 33.5 | 36.3 | 42.5 | 42.1 | 47.6 | 50.4 | 50.1 | 48.6 |
Internal reverberation (test on 2x2 booth without acoustic panels)
T.sec |
0.46 |
0.29 |
0.20 |
0.25 |
0.20 |
0.20 |
0.19 |
0.17 |
0.14 |
Optional equipment
Acoustic panels
External folding table (79 x 50 cm)
Internal folding table (79 x 32 cm)
Audiocups
Ramps for easy access
Kit 10 or 6 jack cable extensions
Jack panel (10 jack + USB)
Modification Voltage 110 V.
Emergency Light
Internal power sockets
Additional windows (w x h, cm):
30 x 170; 62 x 80; 120 x 62
Internal seat
Wall ventilation support
Additional door
Modification door opening 85 cm.
Special sizes
Free field configuration pack
Faraday shielding
