P25W-COMPLETE : PRO 25 soundproof booth Outside dimensions 96 x 96 x 197 cm, containing external folding table

This product is no longer available.

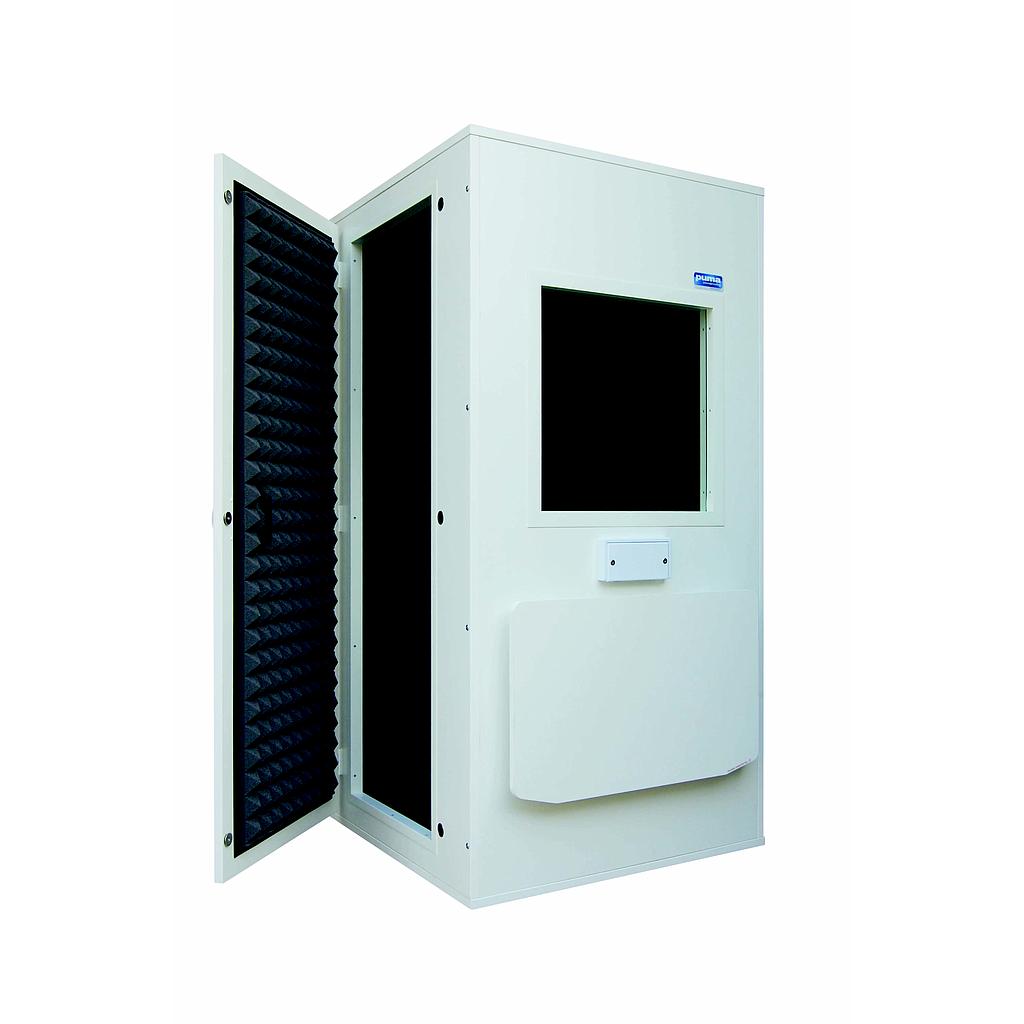

P25W-COMPLETE : PRO 25 soundproof booth
Outside dimensions 96 x 96 x 197 cm, containing external folding table

Terms and Conditions

    Technical specification

    Inside Dimensions (LxWxH)Ext. sq.mWeight
    81 x 81 x 180 cm0.92198 Kg


    PRO25 line is recommended for hearing screening in audiology centers and shops for those who have limited space available and need a very small soundproof booth.

    These booths can be also used in temporary situations for occupational medicine, in companies and schools.

    Basic noise reduction booth, ideal for a quiet environment.


    The exterior finishing is made of a white, highly-resistant, fireproof, washable panel.


    The interior finishing is made of acoustic pyramid foam in anthracite grey, designed to reduce sound waves for a perfect acoustics.


    The door is reversible with magnetic closing. The opening (right or left) can be decided upon assembling the booth and changed in 5 minutes.

    Clear opening 55 x 168 cm (w x h).


    The window consists of a special double safety glass. Clear view 56x56 cm (w x h).


    The floor is layered with different materials and it stands on anti-vibration adjustable feet. Finishing: technical, antistatic, fireproof, washable carpet.

    Connecting instruments

    Cables are laid through a new universal soundproof panel without jack connection.

    All kinds of cables can be used without the need to be cut. Adaptable to all types of instruments. Hangers for earphones are included.

    Electrical system

    Lighting is ensured by a fluorescent lamp with low energy consumption.

    Power supply: 220/240 V. 50-60 Hz.

    Noise reduction

    PRO25 line is tested at the Technical-Physics Laboratory C.S.I. S.p.A. (Milano-Italy) accredited by ACCREDIA.

    *Product conforms with international UNI EN ISO 8253 1:2010 with a background noise no greater than 58dB (at 500Hz) assuming a noise barrier headset (audiocups) is used.

    Acoustic insulation


    Optional Equipment

    • External folding table (79 x 50 cm)

    • Internal folding table (79 x 32 cm)

    • Audiocups

    • Kit 10 or 6 jack cable extensions

    • Jack panel (10 jack + USB)

    • Modification Voltage 110 V.

    • Vertical window strip (16 x 115 cm)

    • Wall audiometer support

    • Internal seat

    • Kit 4 castors (2 with brake)


    Easy and quick to install; no specialized staff required. Just follow the instructions.

    Thanks to reduced weight and small size can be easily set up in 5 minutes and transported in a Station Wagon car.


    The materials are fireproof and self-extinguishing at the origin. Specifications are subject to change without notice.

    Warranty: limited to one year from delivery date.


    Delivered for shipping in a ISPM wooden case with DIY kit


    Medical Device Class I - MDD 93/42/CEE

    2007/47/CE - CEI 64/11

    CEI 64/8 - 2006/95/CE

    UNI EN ISO 8253 1:2010
