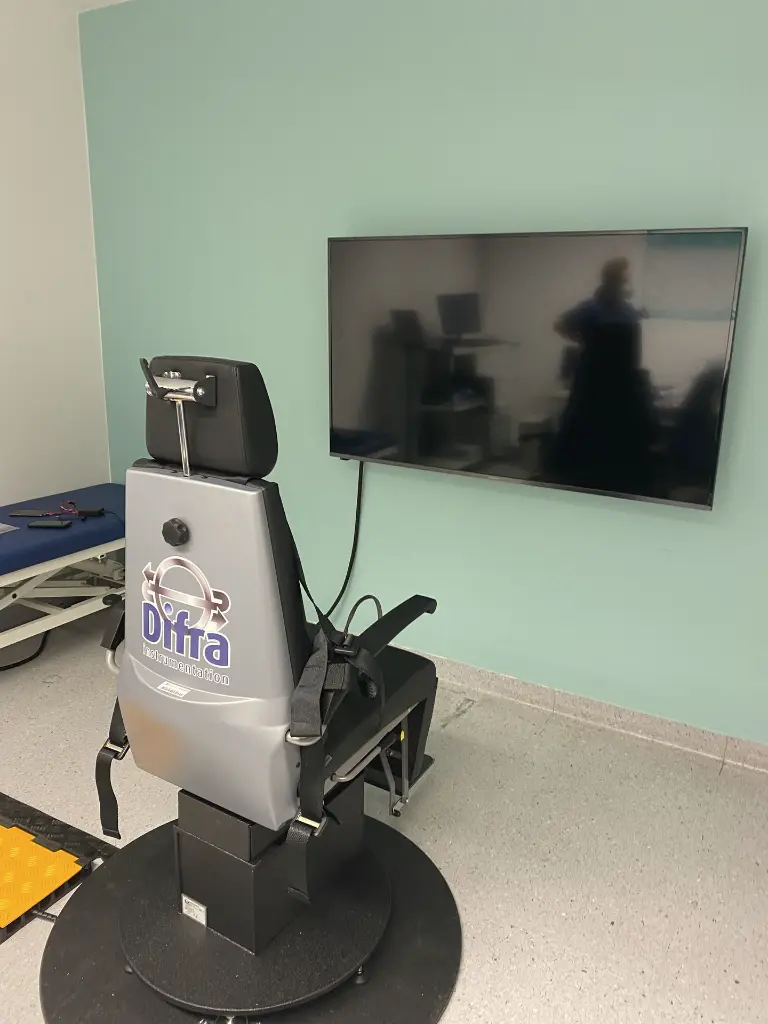

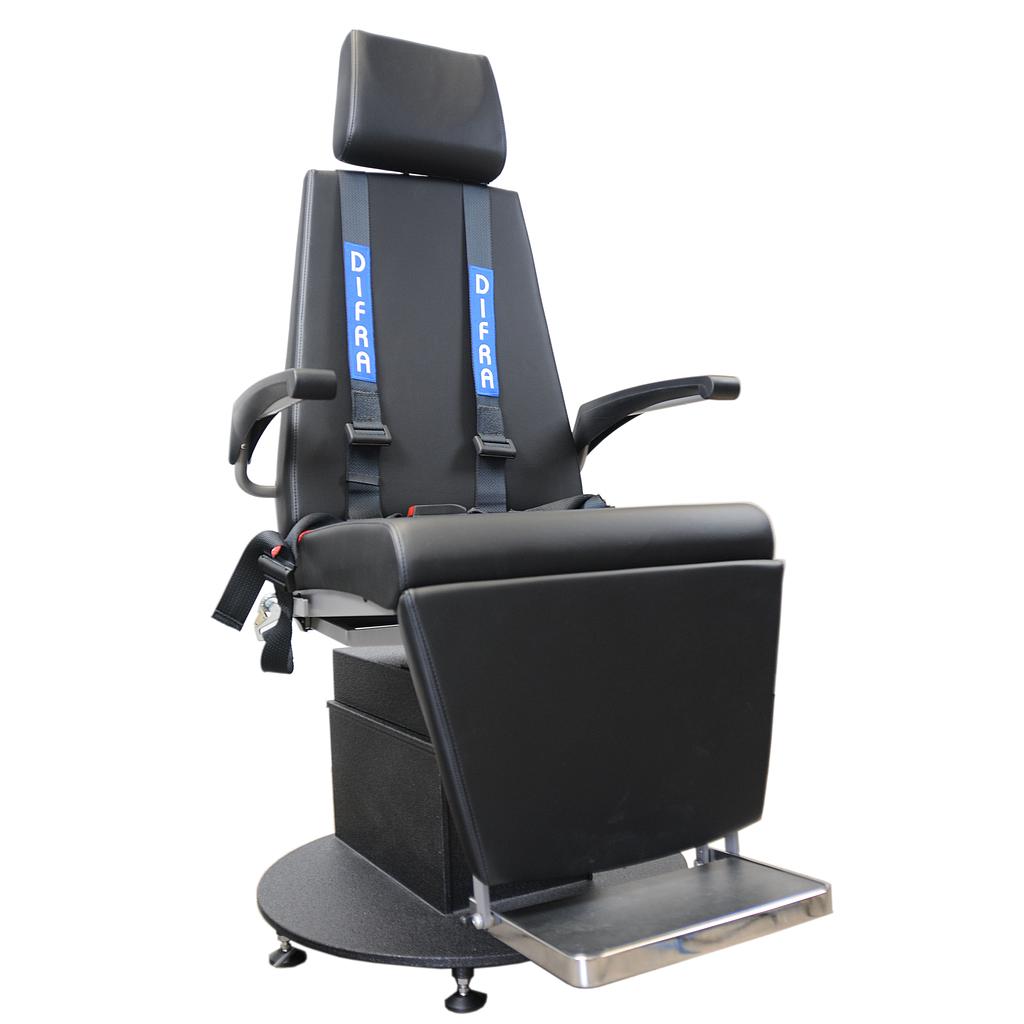

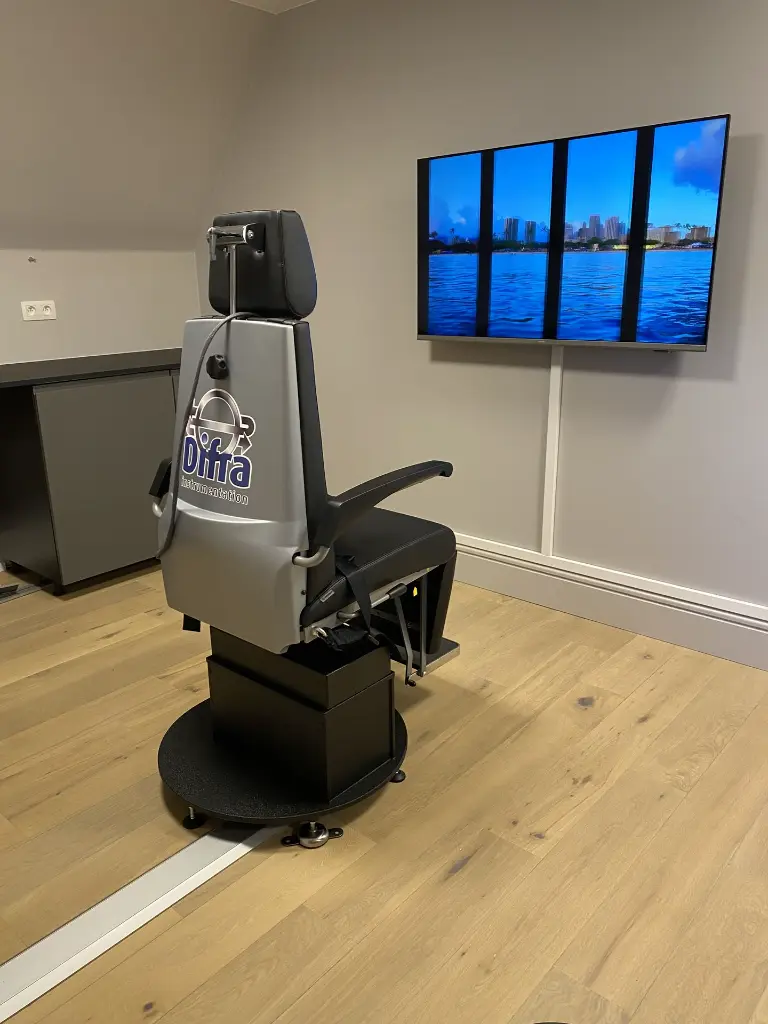

DI 040050 : Nanotorque V2.0 Rotary chair

The rotary chair is an optional accessory to use for vestibular examination in the clinic and the private practice.

The rotary chair is used to quantify the vestibular ocular reflex (VOR) in patients aged 2 years or older.
State-of-the-art microprocessor technology enables easy operation and ensures high accuracy of freely programmable parameters.
All movements are freely programmable. The rotating chair is fully compatible with the software Disoft II by Difra.

The DiSOft II software, in addition to the controller, also records and analyzes the nystagmus data. The movement of the chair is also recorded.

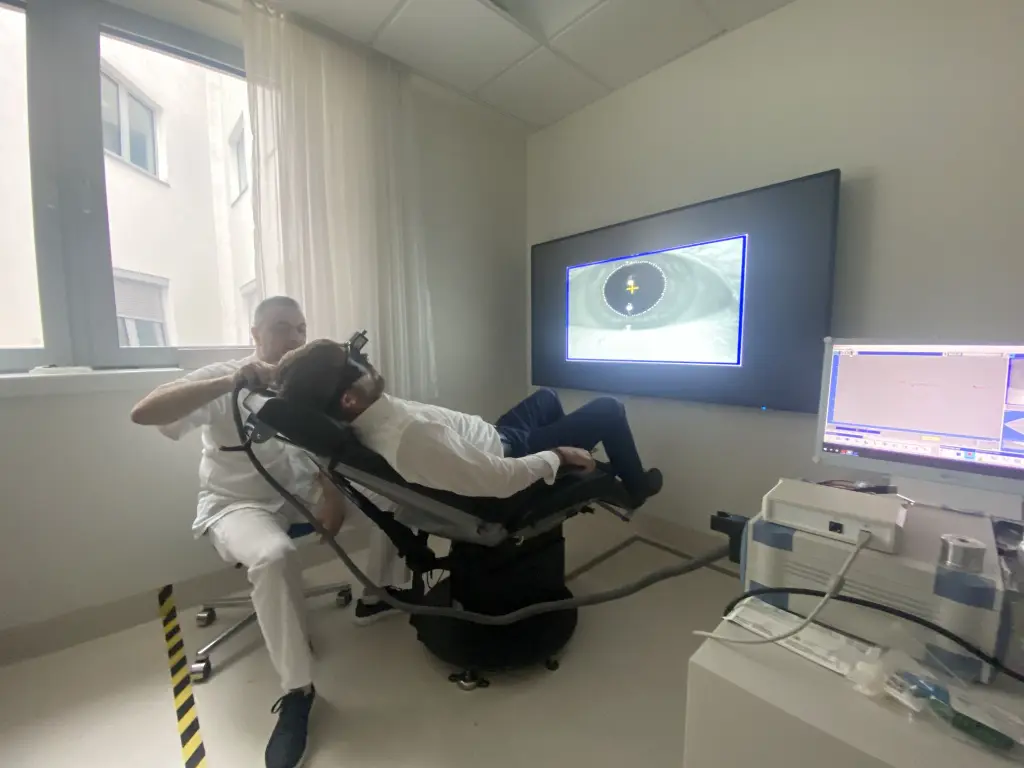

Also, because the seat is comfortable and fully recline, the NanoTorque can be used to perform also other test like caloric or positional and Dix-Hallpike tests.
The chair is equipped with slip rings for connection to Instrumentation Difra VNG devices and on request for Instrumentation Difra ENG device.

The following examination tests enables to monitor the VOR function of the patient :

• Rotational Sinus test

• Velocity Step Test

• Shat Test Automatic positioning of the chair before testing (Individually programmable for each test run)

Technical specifications

• Mains voltage: 240 Volt 50/60 Hz

• Power consumption: approx. 500 watts

• Drive: motor with 3-fold V-belt

• Max. speed: 200°/sec

• Max. acceleration: 200°/ sec²

• Max. load (patient): 150 Kg

• Slip rings: 21 (all are used)

• Footprint: approx. 1300 x 1300 mm

• Safety zone: 2000 x 2000 mm

• Weight: approx. 125 Kg

• Digital output: for recording the chair movement

• Connectable devices: NysStar I (VNG 2 channel), NysStar II (VNG 4 channel), HeadStar (vHit / VNG) and Ideas III on request (ENG)

• Nanotorque meets EN 60601-1 Standard and Directive 93/42/EEC.
